Quick connect couplers have transformed how industries manage fluid and pneumatic connections, offering unmatched convenience and efficiency compared to traditional threaded fittings. These innovative components allow operators to connect and disconnect lines instantly without tools, reducing downtime and improving workplace productivity. Whether you’re working with compressed air, hydraulic systems, or water lines, the right quick connect solution can significantly enhance your operational efficiency.

What Are Quick Connect Couplers?

Quick connect couplers (also called quick disconnects) are specially designed fittings that enable rapid connection and disconnection of fluid or air lines. Each quick connect system consists of two main components:

• Socket (female component): Contains the locking mechanism and often features an internal valve
• Plug (male component): Designed to insert into the socket with sealing elements

When properly engaged, these components form a secure, leak-free connection capable of handling specific pressures and flow rates. Upon disconnection, integrated valves often automatically seal both ends, preventing fluid loss and contamination.

Types of Quick Connect Couplers

Quick Connect Coupler Systems

At the core of fluid transfer efficiency is the standard quick connect coupler. These versatile fittings come in various designs to meet specific operational requirements:

• Push-to-connect designs that engage with simple linear force
• Twist-lock variants that provide additional connection security
• Ball-lock mechanisms offering higher pressure capabilities
• Sleeve-actuated systems for one-handed operation

Quality quick connect couplers feature precision-engineered components, ensuring reliable performance throughout thousands of connection cycles while maintaining leak-free operation under specified pressure conditions.

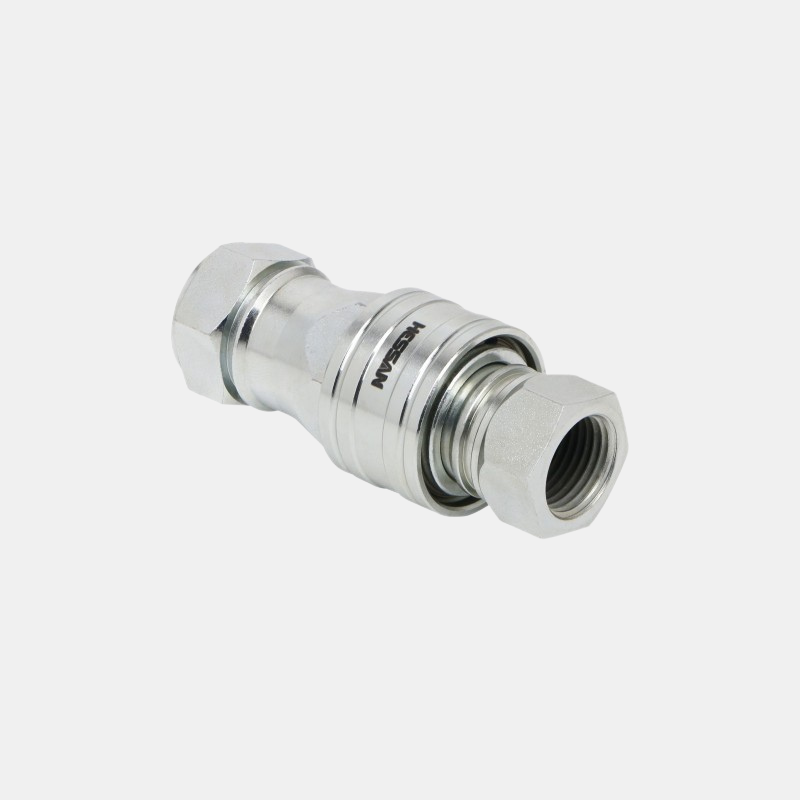

1/2 Quick Connect Solutions

Half-inch quick connect systems represent one of the most commonly used sizes in industrial applications, balancing substantial flow capacity with reasonable space requirements.

These 1/2 quick connect fittings deliver several key advantages:

• Excellent flow characteristics for medium-duty applications
• Compatible with water, air, and light hydraulic systems
• Available with various end connections for system integration
• Ideal balance between compact size and flow performance

Our premium 1/2 quick connect products feature corrosion-resistant materials and advanced sealing technology, ensuring long-term performance even in challenging environments.

Quick Coupling Valves

Quick coupling valves integrate automated flow control directly into the coupling design. When disconnected, these specialized valves instantly stop flow, preventing fluid loss and system contamination.

Available in several configurations:

• Double shut-off: Both socket and plug seal automatically when disconnected
• Single shut-off: Only one side (typically the socket) seals upon disconnection
• Non-valved: Flow remains unrestricted with no automatic shutoff

The advanced quick coupling valves in our product line feature precision-machined components that minimize pressure drop while maximizing flow capacity, ensuring your systems operate at peak efficiency.

1/4 NPT Quick Connect Fittings

For applications requiring compatibility with standard pipe thread systems, 1/4 NPT quick connect fittings provide the perfect solution. These versatile components feature NPT (National Pipe Thread) connections on one end and quick connect functionality on the other.

Key benefits of 1/4 NPT quick connect fittings include:

• Seamless integration with existing threaded systems
• Ideal for precision applications and instrumentation
• Available in straight, elbow, and tee configurations
• Compact design for space-constrained installations

Our premium 1/4 NPT quick connect fittings are manufactured to exacting standards, ensuring proper thread engagement and leak-free performance throughout their service life.

Stainless Steel Quick Connects

When applications demand exceptional durability and corrosion resistance, stainless steel quick connects deliver unmatched performance. These premium components resist chemical attack, withstand elevated temperatures, and maintain structural integrity in demanding environments.

Applications perfectly suited for stainless steel quick connects include:

• Food and beverage processing
• Pharmaceutical manufacturing
• Chemical processing
• Marine environments
• Outdoor installations

Our stainless steel quick connects are available in both 304 and 316 grades, allowing customers to select the optimal balance of performance and cost for their specific application requirements.

Quick Release Fittings

For operations requiring frequent connection changes, quick release fittings provide enhanced ergonomics and operational efficiency. These specialized components feature intuitive release mechanisms that allow for rapid disconnection with minimal effort.

Advantages of quality quick release fittings include:

• One-handed operation for improved convenience
• Reduced operator fatigue during repetitive connections
• Minimal force requirements for disconnection
• Available with various actuation methods (button, sleeve, lever)

Our ergonomically designed quick release fittings incorporate safety features that prevent accidental disconnection while maintaining easy operation when disconnection is required.

Selection Criteria for Quick Connect Solutions

Application Requirements

Selecting the optimal quick connect system begins with a thorough understanding of your application requirements:

• Flow rate needs: Match coupling size to required flow capacity
• Pressure requirements: Ensure selected couplings meet or exceed system pressure
• Connection frequency: Consider ease of operation for frequently changed connections
• Space constraints: Evaluate compact designs for tight installation spaces
• Environmental factors: Account for temperature extremes, exposure to chemicals, or outdoor conditions

Material Compatibility

Material selection critically impacts coupling performance and longevity:

Our engineering team can assist in selecting the optimal material combination for your specific application requirements, ensuring maximum service life and operational reliability.

Seal Selection

Proper seal material selection ensures leak-free performance and chemical compatibility:

• NBR (Nitrile): Excellent for petroleum-based fluids and general applications
• EPDM: Ideal for water, steam, and many chemicals
• FKM (Viton®): Superior for high-temperature applications and chemical exposure
• PTFE (Teflon®): Unmatched chemical resistance across nearly all media
• FFKM (Perfluoroelastomer): Premium solution for the most demanding chemical applications

Our product specialists can recommend the optimal seal material based on your specific media, temperature range, and performance requirements.

Installation Best Practices

Proper installation ensures optimal performance and service life from quality quick connect systems:

1. Clean all components before assembly to prevent contamination
2. Apply appropriate thread sealant when installing threaded connections
3. Verify proper alignment before attempting connection
4. Ensure complete engagement of locking mechanisms
5. Test connections at low pressure before full system operation
6. Install protective caps on disconnected fittings to prevent contamination

Our technical support team provides comprehensive installation guidance to help you maximize the performance and longevity of your quick connect systems.

Maintenance Recommendations

Regular maintenance extends the service life of quick connect components:

• Inspect seals periodically for signs of wear or damage
• Clean exposed surfaces to prevent contamination
• Lubricate moving parts according to manufacturer recommendations
• Replace worn components proactively before failure occurs
• Keep spare components on hand for critical applications

Our preventive maintenance kits include all necessary components for routine service, helping you maintain peak system performance while minimizing downtime.

Troubleshooting Common Issues

Even properly selected and installed quick connect systems may occasionally experience performance issues:

Connection Difficulties

Symptoms:

• Excessive force required for connection
• Inability to fully engage locking mechanism

Solutions:

• Verify component compatibility
• Inspect for damage or contamination
• Confirm system is depressurized before connection
• Check for proper alignment

Leakage Problems

Symptoms:

• Visible fluid leakage at connection point
• Gradual system pressure loss

Solutions:

• Verify complete coupling engagement
• Inspect seals for damage or wear
• Check for proper installation
• Ensure compatible media and pressure rating

Disconnection Challenges

Symptoms:

• Difficulty releasing coupling
• Excessive force required for disconnection

Solutions:

• Confirm system pressure is relieved
• Inspect release mechanism for damage
• Clean components to remove contamination
• Verify proper operation technique

Our technical support specialists are available to help diagnose and resolve any performance issues with your quick connect systems.

Industry Applications

Manufacturing and Industrial

Quick connect couplers streamline numerous manufacturing processes:

• Compressed air distribution for pneumatic tools
• Cooling systems for production equipment
• Hydraulic power for manufacturing equipment
• Process fluid transfer operations

Mobile Equipment

Mobile equipment benefits significantly from quick connect technology:

• Rapid attachment changes on construction equipment
• Hydraulic implement connections on agricultural machinery
• Cooling system maintenance on transportation equipment
• Fuel and fluid transfers for field service operations

Process Industries

Process facilities rely on quick connects for:

• Sample point connections in chemical processing
• CIP (Clean-In-Place) systems in food manufacturing
• Portable pump connections for liquid transfer
• Utility connections for processing equipment

Facility Maintenance

Maintenance operations are simplified with quick connect systems:

• HVAC service connections
• Pressure washing equipment
• Temporary water supply lines
• Compressed air for maintenance tools

Advantages of Premium Quick Connect Solutions

Investing in quality quick connect products delivers significant operational benefits:

1. Reduced Downtime: Rapid connection/disconnection minimizes process interruptions
2. Improved Safety: Elimination of tools and simplified operation reduces injury risk
3. Leak Prevention: Precision engineering ensures reliable, leak-free connections
4. System Protection: Automatic shutoff prevents contamination and fluid loss
5. Operational Efficiency: Simplified connections improve worker productivity
6. Extended Service Life: Quality materials and construction minimize replacement costs

Our comprehensive quick connect product line delivers these advantages across all applications, helping you optimize system performance while reducing operational costs.

Transforming Connections with Quick Connect Technology

Quick connect couplers represent a significant advancement in fluid and pneumatic connection technology. By eliminating time-consuming threaded connections while improving reliability and operational efficiency, these innovative components deliver measurable value across countless applications.

Whether you need standard quick connect couplers, specialized quick coupling valves, durable stainless steel quick connects, convenient quick release fittings, or application-specific 1/2 quick connect or 1/4 NPT quick connect fittings, our comprehensive product line offers the perfect solution for your requirements.

Contact our application specialists today to discover how our premium quick connect solutions can enhance your operations, reduce maintenance time, and improve system reliability. With industry-leading quality, competitive pricing, and expert technical support, we’re ready to help you select and implement the ideal quick connect system for your specific needs.
